Setting up a SpeedTouch 536/536i ADSL router via USB

  1. Insert the installation CD included with the ADSL router into your CD-ROM drive.
    If the setup program does not start automatically, open My Computer, then click on the CD-ROM drive.

    Data/Images/slika_01.png

  1. Right-click the CD-ROM icon and select AutoPlay from the menu.

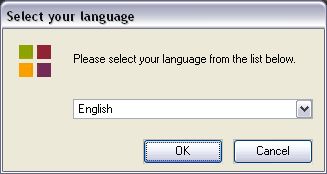

    You will be prompted to choose a language.

    Data/Images/slika_02.jpg

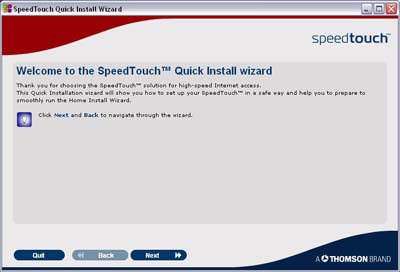

  1. After you change the language, click the Next button.

    Data/Images/slika_03.jpg

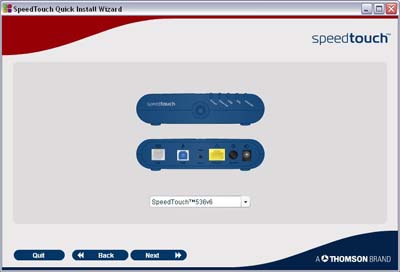

  1. Select SpeedTouch 536v6 from the list, then click the Next button.

    Data/Images/slika_04.jpg

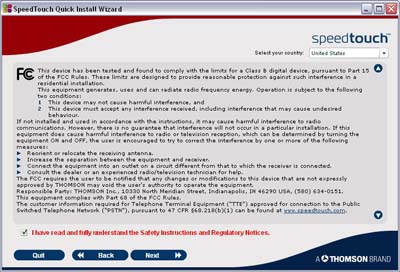

  1. Check the box next to the option marked with red (see below picture), then click the Next button.

    Data/Images/slika_05.jpg

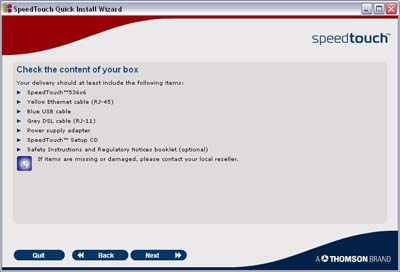

  1. Check that all parts of the equipment are included in the product box, then click the Next button.

    Data/Images/slika_06.jpg

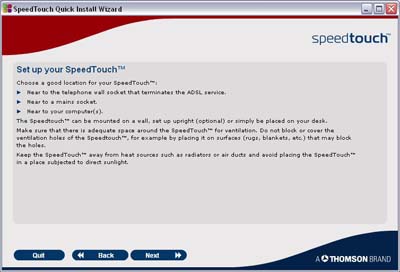

  1. Read instructions for choosing the installation location, then click the Next button.

    Data/Images/slika_07.jpg

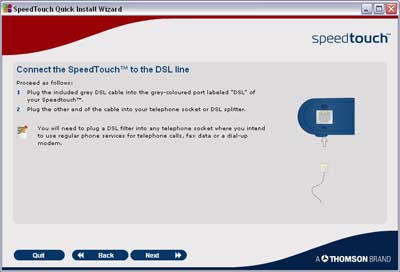

  1. Use the included telephone cable to connect the Modem port in the ADSL splitter and the grey Phone port on the router.

    Data/Images/slika_08.jpg

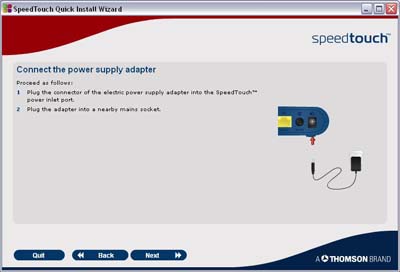

  1. Follow instructions on the screen to connect the ADSL router to the power supply.

    Data/Images/slika_09.jpg

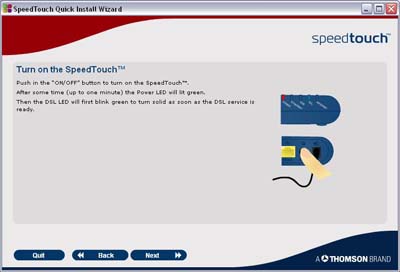

  1. Switch the router on and wait until the green POWER lamp lights up. After that, the DSL lamp first blinks green, and then lights up.

    Data/Images/slika_10.jpg



  1. Wait until the green DSL lamp lights up before setting up the Internet connection for the router.

    Data/Images/slika_12.jpg

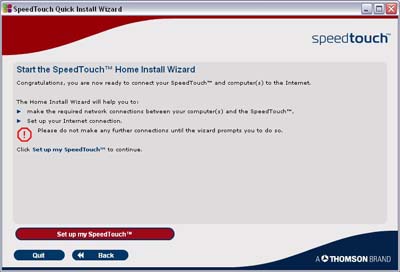

  1. To set up the Internet connection, click on the Set up my SpeedTouch button.

    Data/Images/slika_12_no1.jpg

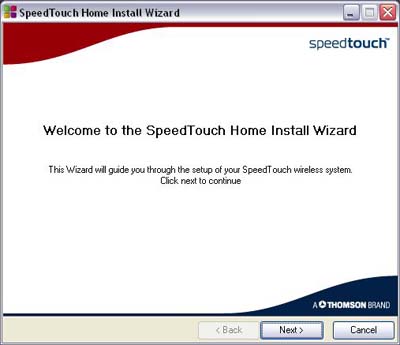

  1. Wait until the Home Install Wizard appears on screen, then click the Next button.

    Data/Images/slika_13.jpg

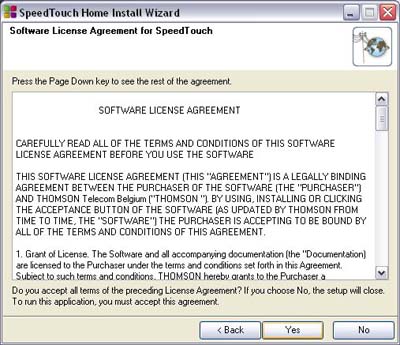

  1. Click the Yes button after you read the License Agreement.

    Data/Images/slika_14.jpg

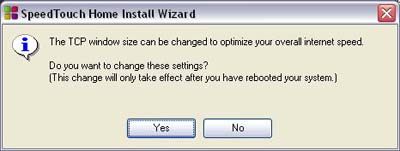

  1. If the setup offers to automatically configure TCP window size, click Yes.

    Data/Images/slika_15.jpg

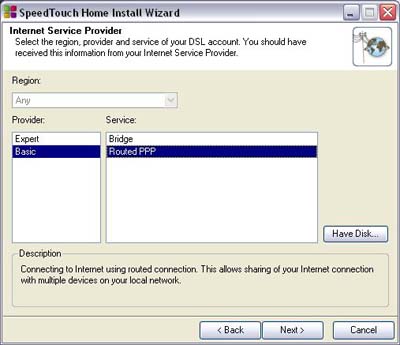

  1. Choose Basic, then select Routed PPP from the list.

    Data/Images/slika_16.jpg

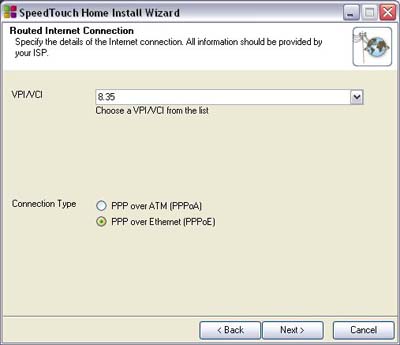

  1. Enter 8.35 in the VPI/VCI field, then choose PPP over Ethernet as your Connection Type.

    Data/Images/slika_17.jpg

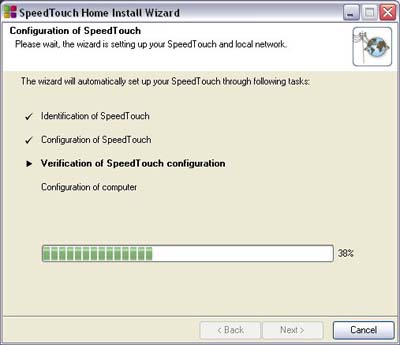

  1. After you enter all parameters, the installation program will configure your ADSL router and computer.

    Data/Images/slika_18.jpg

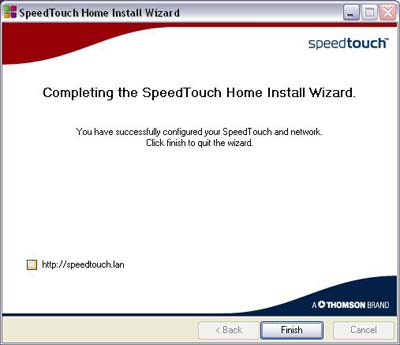

  1. When the setup is complete, click the Exit button to exit Home Setup Wizard.

    Data/Images/slika_19.jpg


    The ADSL connection setup is complete. If all parameters are correct, you may start using the Internet.
